About the License Management Service console
The License Management Service console is divided into two sections. The left section consists of different features of this service. On the right you can perform various operations or view relevant data which belongs to the selected feature. Notifications, various settings options, online Help, and user details are available on the top right corner.
The Setup panel is launched when you first open the License Management Service console. This panel is a shortcut to perform various operations which are a part of getting started with License Management Service.

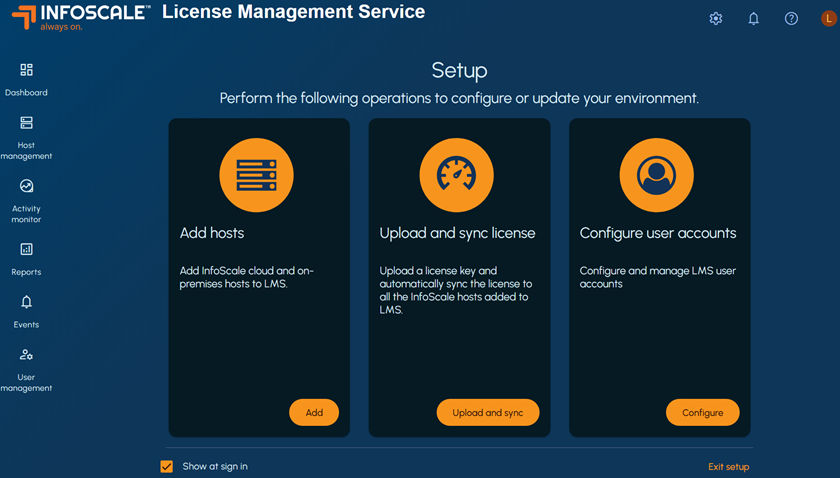

Figure: Setup panel
Exit the Setup panel to view the Dashboard. The dashboard provides a quick visual summary of license status, the faults that are triggered on the hosts, and InfoScale product versions.

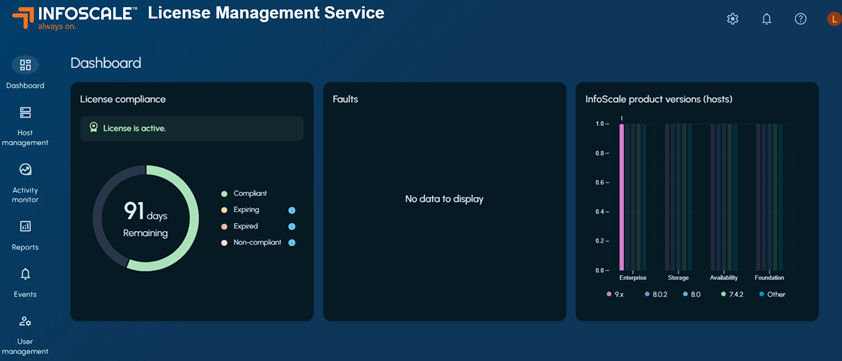

Figure: License Management Service dashboard
The following tasks can be completed using the top right corner menus:
-
Settings: A number of operations such as product registration, SMTP server configuration, and color theme selection (dark mode, light mode, system mode) can be done from here.
-
Event notifications: View and fix the faults that are generated.
-
Help: Setup menu, product documentation, and product installation information is available here.
-
User profile: Logged in user details, option to change password, and log out operations are available here.
The product features on the left hand are as follows:
-
Dashboard: This menu provides graphical and statistical insights about the licensing status, InfoScale product deployments, and faults in the systems.
-
Host management: This menu enables you to manage InfoScale hosts. You can upload and sync licenses to all the hosts added to License Management Service and view the license summary for your InfoScale deployments.
the following options are displayed when you expand Host management:
-
Hosts
-
Upload and sync license
-
Activity monitor: This menu consists of tasks and audit logs. The ongoing status of all tasks that are performed on the hosts or the containers, for example, adding, removing, and refreshing are shown in the System taskstab. The Audit logs tab gathers information about all the tasks that are performed on the License Management Service console.
-
Reports: This menu lets you generate reports for your InfoScale deployments with details about InfoScale hosts.
-
Events: This menu shows the generated faults and provides a summary of number of faults that are of type critical, warning, and informational .
-
User management: This menu lets you manage local users, groups, and domains.
